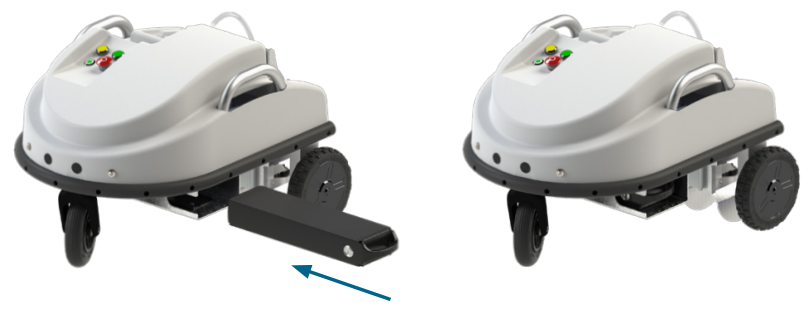

Step 1: Attach battery
1. Carefully slide the battery into the robot.
Step 2: Turn on robot

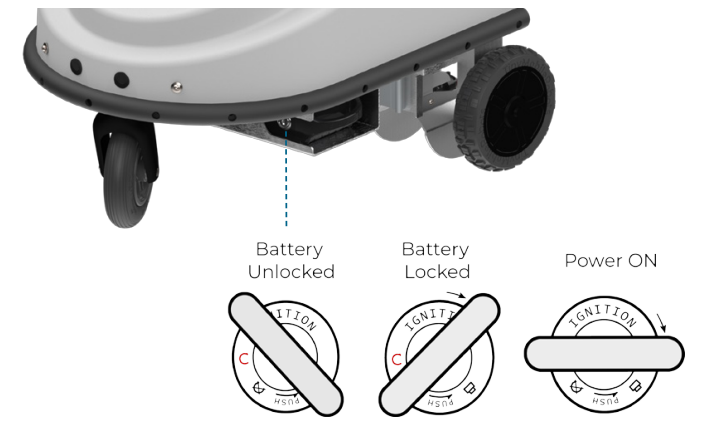

1. Lock the battery and power on the robot
using the battery key.
Step 3: Turn on tablet
1. Press and hold the power button for 4 seconds until
the screen lights up.
Step 4: Mount container

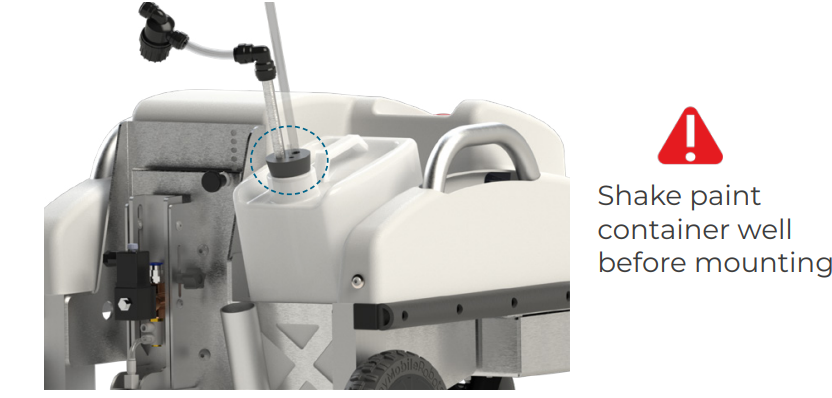

1. Mount the paint container in the holder.
2. Insert the rubber plug with the two hoses in the paint container.
3. Ensure the rubber plug is fastened.
Step 5: Prime system

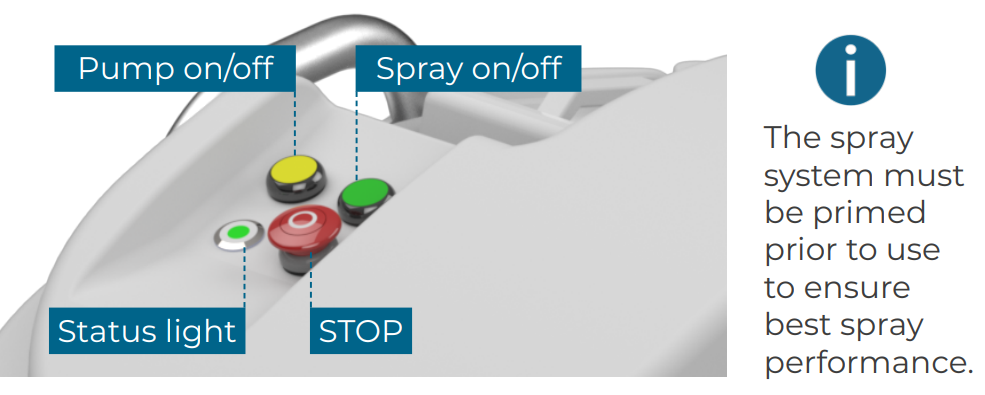

1. Press ”Pump on/off” to START the pump.
2. Paint will now be sucked into the suction hose. The system is primed when paint
flows continuously back into the paint container.
3. Press ”Pump on/off” to STOP the pump.
Step 6: Adjust spray tool

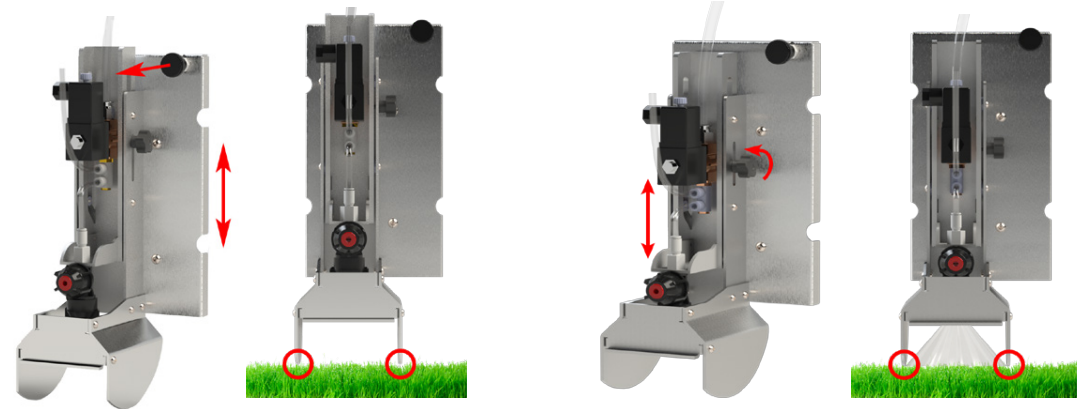

1. Adjust the height of the spray tool, so the line width plates touch the
top of the grass.
2. Adjust the height of the spray nozzle, so the paint just touches the edge of the
line width plates.

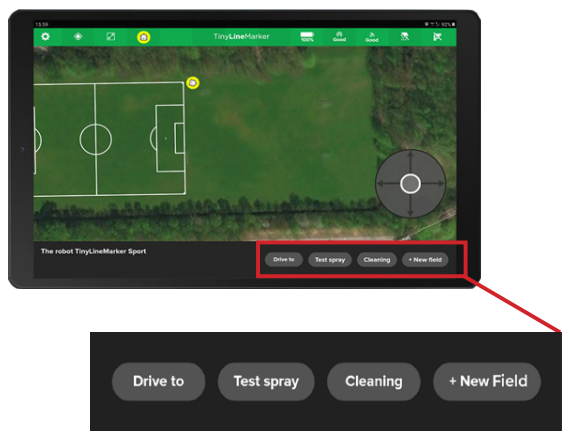

Step 7: Create a new field

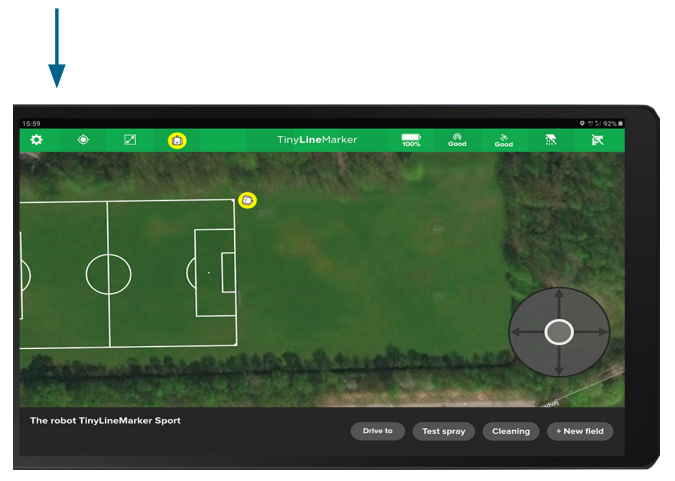

1. Press to create a new field. This option is shown when no
field is selected (Deselect a field by pressing outside the field).
2. Follow the on-screen instructions for creating the new field.
Step 8: Test and start a field
1. Select a field by pressing anywhere on or inside the field. The field turns yellow and allows you to Start, Test or Modify the Field.
2. Press to have the robot drive the field without painting it.
There are 3 different test types:
- Fast - Drives to the corner points
- Normal - Drives along the outline.
- Full - Drives all the lines of the field.
3. If the test was successful, press and the robot will paint the selected field.
For Fast and Normal tests, the robot will run over the goal sockets. Therefore, Full test
must be used when having fixed goal posts.
Step 9: Cleaning after use

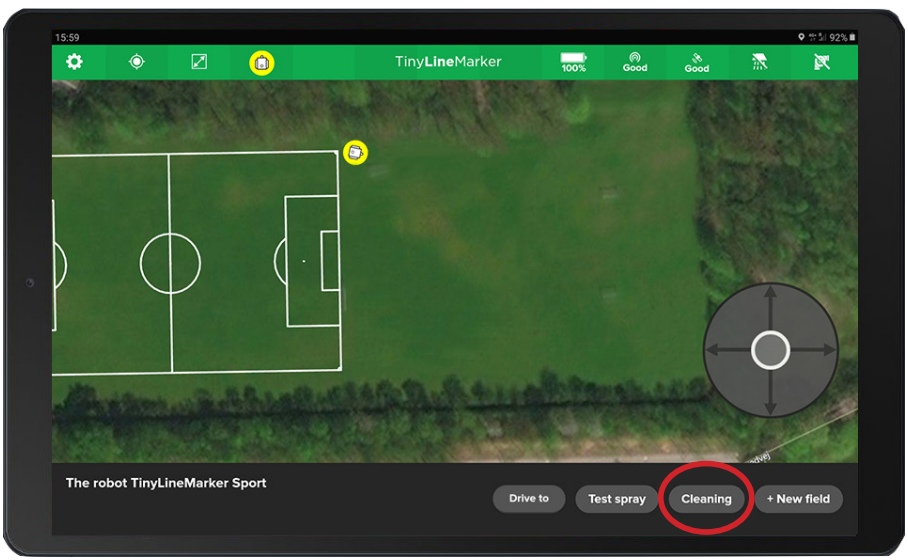

1. With no field selected, press Cleaning.

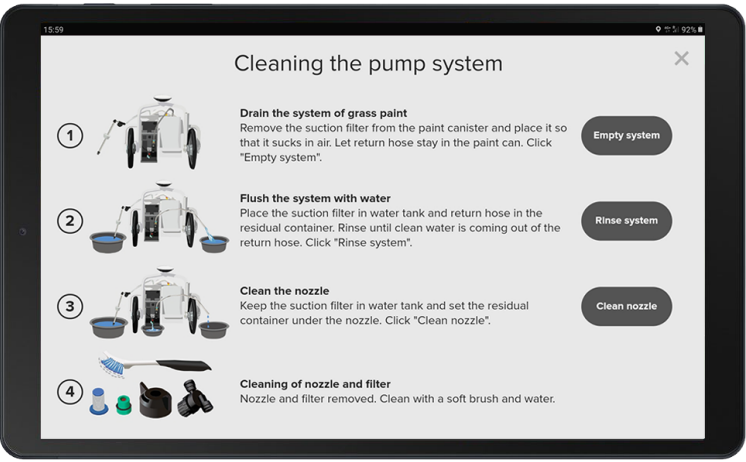

2. Follow the on-screen instructions to clean the robot.
The robot must be cleaned after every use. The pump system might be harmed if these cleaning instructions are not followed.
Step 10: Power off and charge batteries

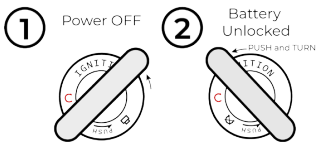

1. Turn the key to power off the robot and unlock the battery.
2. Insert the charger.

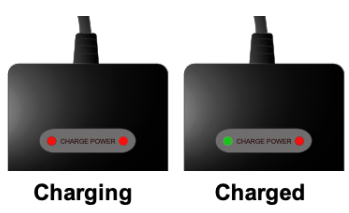

3. Check the battery lights to see when the battery is fully charged.
You are all set!
Enjoy your TinyLineMarker Sport.
For more information, please refer to the TinyLineMarker Sport User Manual.
For support, please refer to the Help section in the TinyLineMarker app.
