TinyLineMarker Pro X
Image: Front side of TinyLineMarker Pro X with numbered components
- GPS antenna
- Red STOP button
- Status light
- Safety bumper
- Battery rack
- Caster wheel
- Suction hose (transparent)
- Return hose (blue)
- Paint container
- Holder for suction hose and return hose
- Grips for spray tool height adjustment
- Nozzle
- Plates for adjusting line width
- Motor wheels

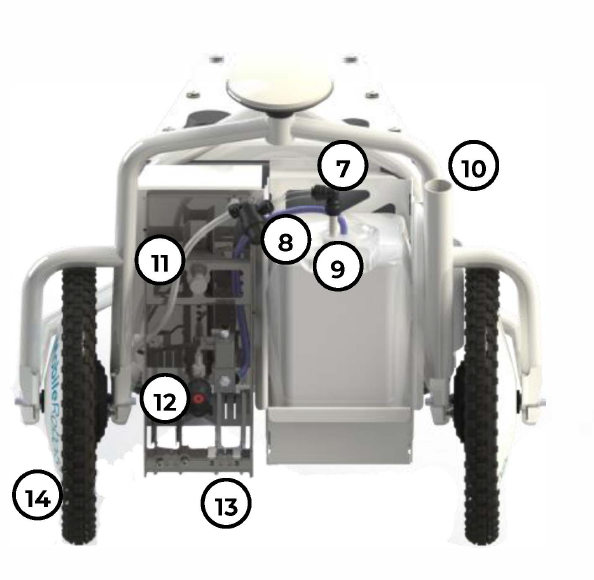

Image: Rear side of TinyLineMarker Pro X with numbered components

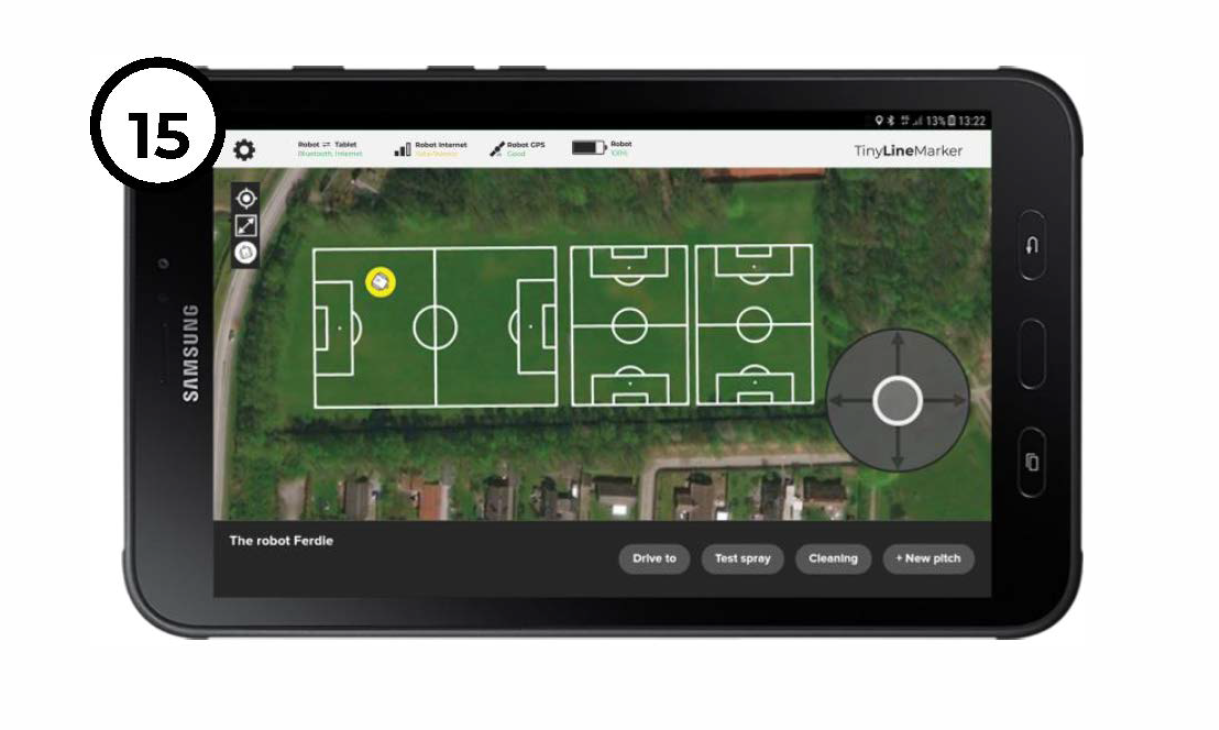

15. Tablet with TinyLineMarker app
16. Battery with key
17. Battery charger
Image: Image of the TinyLineMarker Tablet
Image: Battery and battery charger

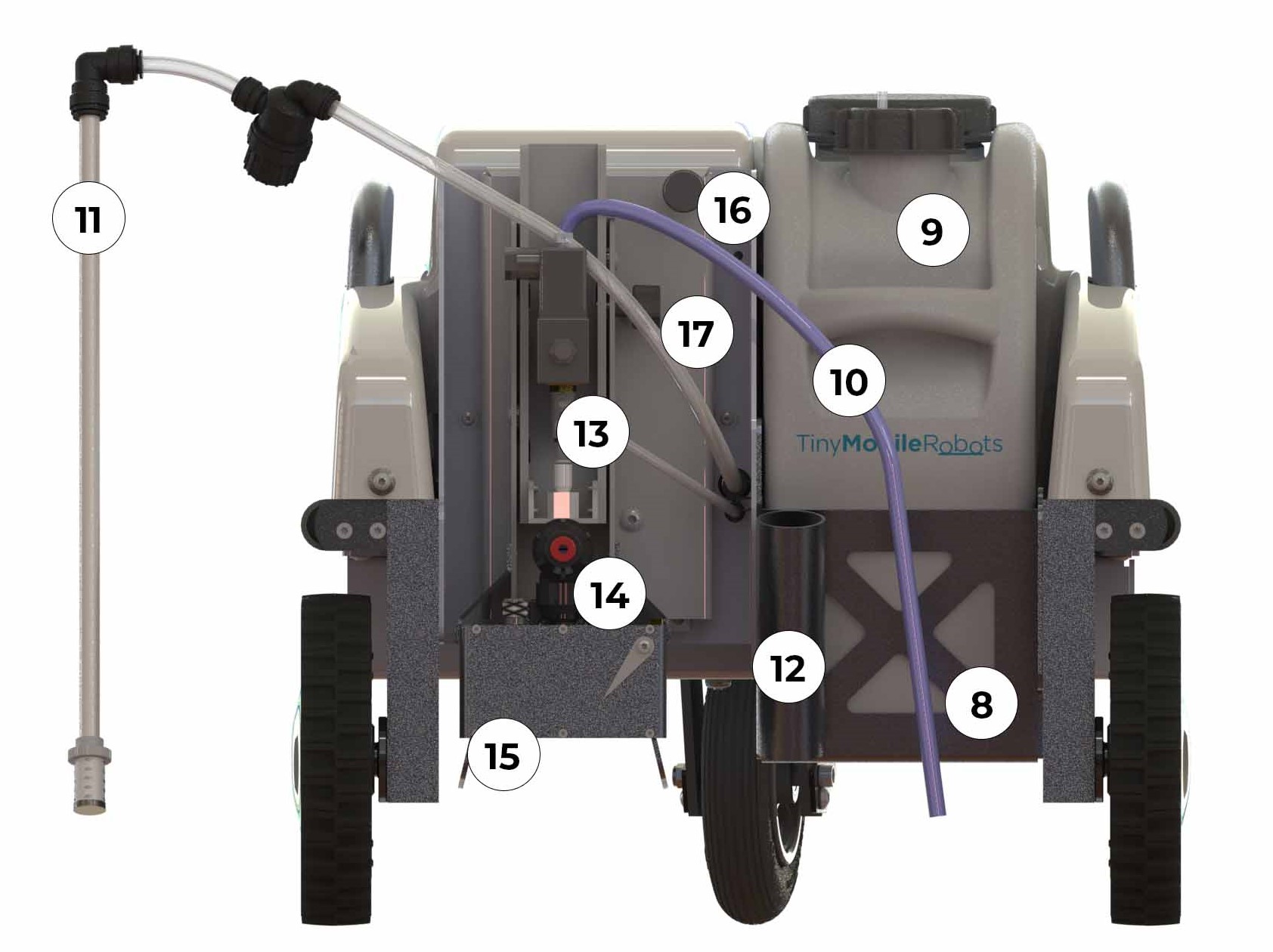

TinyLineMarker Sport

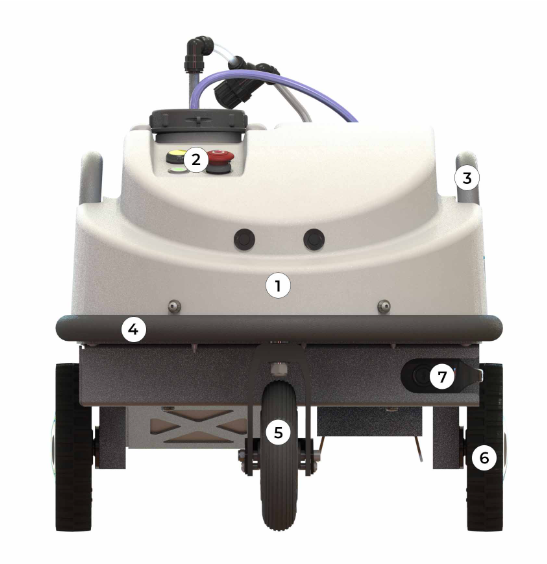

1. TinyLineMarker Sport
2. Control panel
3. Handles for lifting
4. Safety bumper
5. Caster wheel
6. 2x Motor wheels
7. Battery rack
8. Container support
9. Paint container, 5 L or 10 L / 1.3 gal or 2.6 gal
10. Return hose
11. Suction hose
12. Case for suction hose and return hose
13. Spray tool
14. Spray nozzle
15. Line width plates, 5-10 cm / 1.9-3.9"
16. Grip for height adjustments of spray tool
17. Finger screw for height adjustment of nozzle

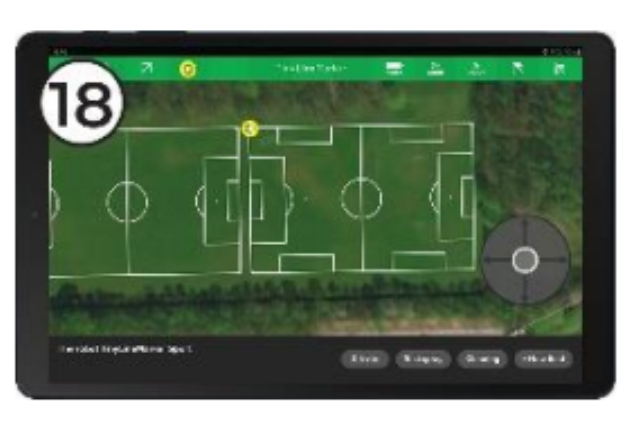

18. Tablet with TinyLineMarker app

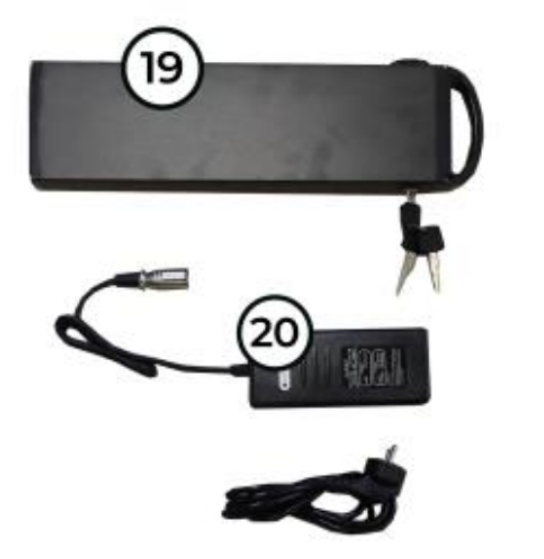

19. Battery with key
20. Battery charger
