Turning the robot ON
When the battery is attached and locked, you can turn on the robot by turning the battery key clockwise from the locked position. The status light will light up when the robot starts. It can take the robot a few minutes to retrieve position data.

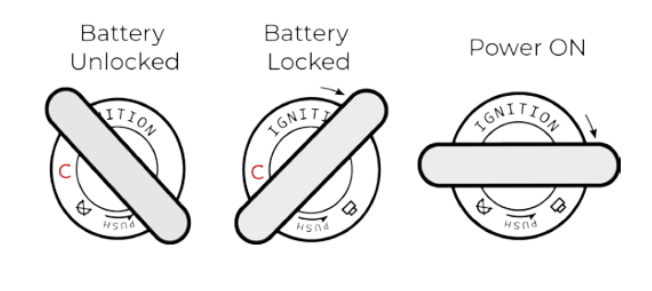

Image: Battery key in the battery unlocked, battery locked, and power on positions
Turning the tablet ON
Turn on the tablet by pressing and holding the power key until the tablet briefly vibrates. The TinyLineMarker app automatically starts when the tablet is turned on.
Turning the robot and tablet OFF
Turn off the robot by turning the battery key counterclockwise.
Turn off the tablet by pressing and holding the Power button until the shutdown screen appears. Then press Shut down on the tablet screen. Shutting down the tablet while the robot is not in use will preserve the battery.
